Spiral Flute vs Spiral Point Tap Comparison Guide Basic
Tapping is a critical machining process used to create internal threads in holes for screws, bolts, and fasteners. Among the many types of taps available, spiral flute taps and spiral point taps are two of the most commonly used in modern manufacturing and metalworking. Understanding the differences between spiral flute vs spiral point tap is essential for machinists, engineers, and manufacturers who want to achieve precision, efficiency, and tool longevity. This comprehensive guide explains their design, applications, advantages, limitations, and how to choose the right tap for your specific machining needs.
What Is a Tap in Machining?
A tap is a cutting tool used to create internal threads inside a drilled hole. It removes material as it rotates into the hole, forming threads that match a corresponding screw or bolt. Different tap designs are developed for various materials, hole types, and machining environments. Selecting the correct tap type improves thread quality, reduces tool breakage, and increases productivity.
Two of the most widely used taps in industrial applications are spiral flute taps and spiral point taps, each designed for different hole conditions and chip evacuation methods.
What Is a Spiral Flute Tap?

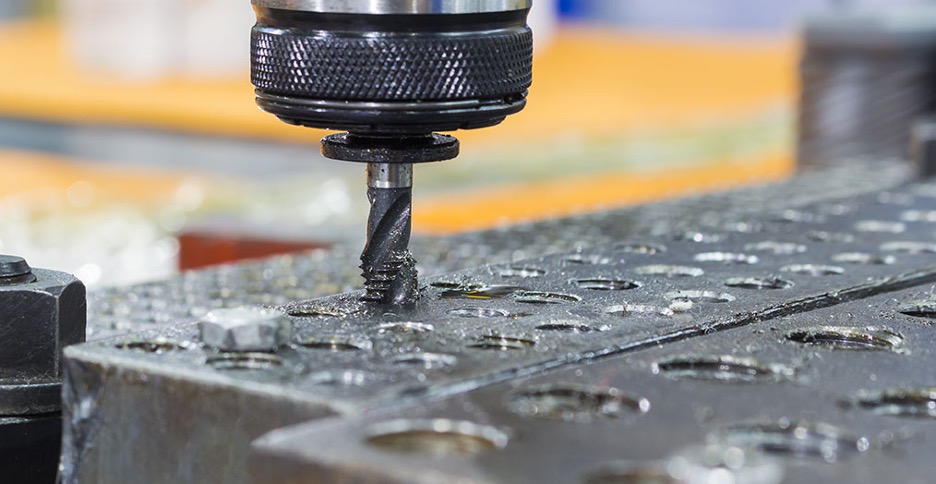

A spiral flute tap features helical flutes that resemble a drill bit. These flutes are designed to pull chips upward and out of the hole during tapping. Spiral flute taps are primarily used for blind holes where chips cannot exit through the bottom of the hole.
The spiral angle of the flute helps lift chips efficiently, preventing clogging and reducing the risk of tap breakage. These taps are commonly used in CNC machining, precision threading, and applications requiring high thread accuracy.
Key Characteristics of Spiral Flute Taps
- Helical flute design
- Pulls chips upward
- Ideal for blind holes
- Smooth cutting action
- Excellent chip evacuation in deep holes
What Is a Spiral Point Tap?
A spiral point tap, also known as a gun tap, has straight flutes with an angled cutting edge that pushes chips forward through the hole. Unlike spiral flute taps, spiral point taps are specifically designed for through holes where chips can be expelled out the bottom.
This forward chip movement makes spiral point taps highly efficient for high-speed production and automated machining environments. They are widely used in mass manufacturing, automotive, and metal fabrication industries.
Key Characteristics of Spiral Point Taps
- Straight flutes with angled cutting face
- Pushes chips forward
- Ideal for through holes
- Strong and durable design
- Suitable for high-speed tapping
Spiral Flute vs Spiral Point Tap: Core Differences
Understanding the difference between spiral flute and spiral point taps helps machinists choose the right tool for better performance and accuracy.
Chip Evacuation Method
The primary difference lies in how chips are removed during the tapping process. Spiral flute taps pull chips upward and out of the hole, making them ideal for blind holes. Spiral point taps push chips forward, which works best in through holes where chips can exit freely.
Hole Type Compatibility
Spiral flute taps are recommended for blind holes because chip buildup at the bottom can cause tool damage. Spiral point taps are better suited for through holes since they efficiently clear chips through the exit side.
Cutting Performance
Spiral point taps generally cut faster and are more suitable for high-production environments. Spiral flute taps, on the other hand, offer better control and precision in delicate or deep-hole applications.
Strength and Durability
Spiral point taps are often stronger due to their straight flute design and are less prone to breakage in rigid setups. Spiral flute taps may experience higher stress in hard materials if chip evacuation is not managed properly.
Advantages of Spiral Flute Taps
Spiral flute taps offer several advantages in precision machining and complex threading applications.
Ideal for Blind Holes
One of the biggest advantages of spiral flute taps is their ability to remove chips from blind holes without clogging the cutting area. This reduces tool breakage and improves thread quality.
Better Surface Finish
The smooth cutting action of spiral flute taps produces cleaner and more accurate threads, especially in soft and medium-hard materials like aluminium and stainless steel.
Improved Chip Control
By lifting chips out of the hole, spiral flute taps prevent chip packing, which can otherwise damage threads and reduce tool life.
Suitable for Deep Holes
These taps perform exceptionally well in deep-hole threading applications where chip removal is challenging.
Advantages of Spiral Point Taps
Spiral point taps are widely used in industrial settings due to their speed and efficiency.
Faster Tapping Speed
Spiral point taps are designed for high-speed operations and are commonly used in automated production lines and CNC machining.
Strong and Durable
Their robust design allows them to withstand higher cutting forces, making them suitable for harder materials like steel and cast iron.
Excellent for Through Holes
By pushing chips forward, spiral point taps prevent clogging and ensure smoother cutting in through-hole applications.
Longer Tool Life in Production
Due to efficient chip evacuation and reduced friction, spiral point taps often last longer in high-volume manufacturing environments.
Material Compatibility and Performance
Choosing between spiral flute vs spiral point tap also depends on the workpiece material. Spiral flute taps are ideal for softer materials such as aluminium, brass, and plastics, where chip control is essential. They are also effective in stainless steel when precision is required.
Spiral point taps perform better in tougher materials like carbon steel, alloy steel, and cast iron. Their forward chip flow reduces heat buildup and enhances cutting stability, especially in repetitive machining tasks.
Applications in Modern Manufacturing
Both tap types are essential in various industries, but their applications differ based on machining requirements.
Spiral Flute Tap Applications
- Blind hole threading
- Aerospace components
- Precision engineering
- CNC machining centres
- Deep hole threading tasks
Spiral Point Tap Applications
- Through hole tapping
- Automotive manufacturing
- Mass production lines
- Metal fabrication
- Industrial machinery parts
How to Choose the Right Tap for Your Project
Selecting the correct tap depends on several critical factors.
Type of Hole
If the hole is blind, a spiral flute tap is the best choice. If it is a through hole, a spiral point tap will provide better performance and efficiency.
Production Volume
For high-speed and large-scale production, spiral point taps are more efficient. For precision and specialised threading, spiral flute taps offer better control.
Material Type
Soft materials and delicate threading benefit from spiral flute taps, while harder materials and heavy-duty operations favour spiral point taps.
Machine Capability
CNC machines with controlled speeds and coolant systems can effectively use both types of taps. However, automated systems often prefer spiral point taps for faster cycle times.
Common Mistakes When Using Taps
Improper tap selection or usage can lead to poor thread quality and tool damage. Some common mistakes include:
- Using spiral point taps in blind holes
- Incorrect tapping speed and feed rate
- Poor lubrication during tapping
- Choosing the wrong tap material for the workpiece
- Ignoring chip evacuation requirements
Avoiding these mistakes ensures longer tool life and better machining results.
Maintenance and Best Practices
Proper maintenance extends the lifespan of both spiral flute and spiral point taps. Always use appropriate cutting fluid to reduce heat and friction during tapping. Regular inspection for wear and damage helps prevent sudden tool failure. Additionally, maintaining proper alignment and correct spindle speed improves threading accuracy and performance.
Final Thoughts
Understanding the differences between spiral flute vs spiral point tap is essential for achieving high-quality threads and efficient machining operations. Spiral flute taps excel in blind hole applications with superior chip evacuation and precision, while spiral point taps are ideal for through holes and high-speed production due to their strength and forward chip flow design.
By selecting the right tap based on hole type, material, and production requirements, manufacturers and machinists can improve productivity, reduce tool wear, and enhance overall machining accuracy. Investing in the correct tapping tools not only ensures smoother operations but also contributes to better thread quality, reduced downtime, and long-term manufacturing efficiency.
